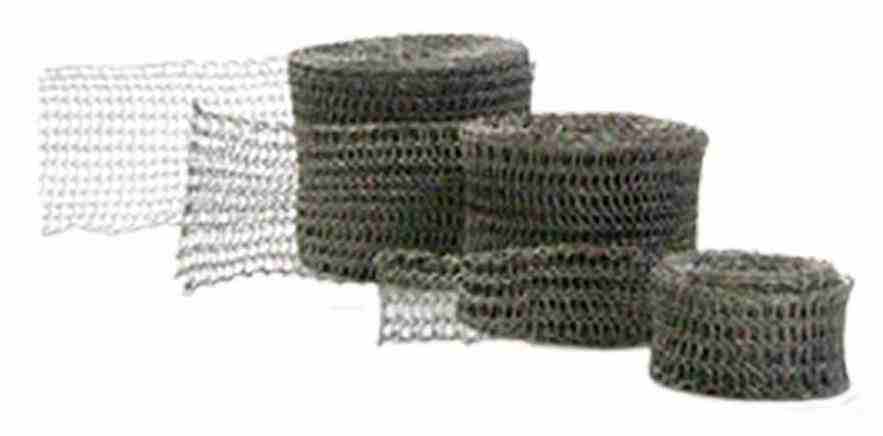

Ribbon Type

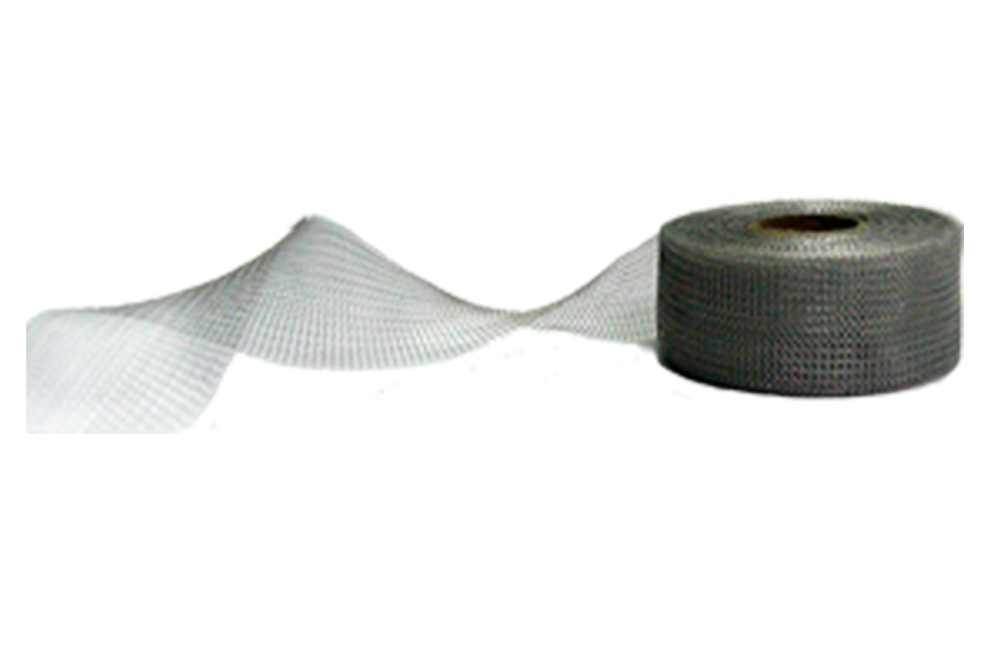

Sleeve Type

 @
Applications

As transferring screens of high-voltage cables and earthed installations:

Underground Cables Jointing

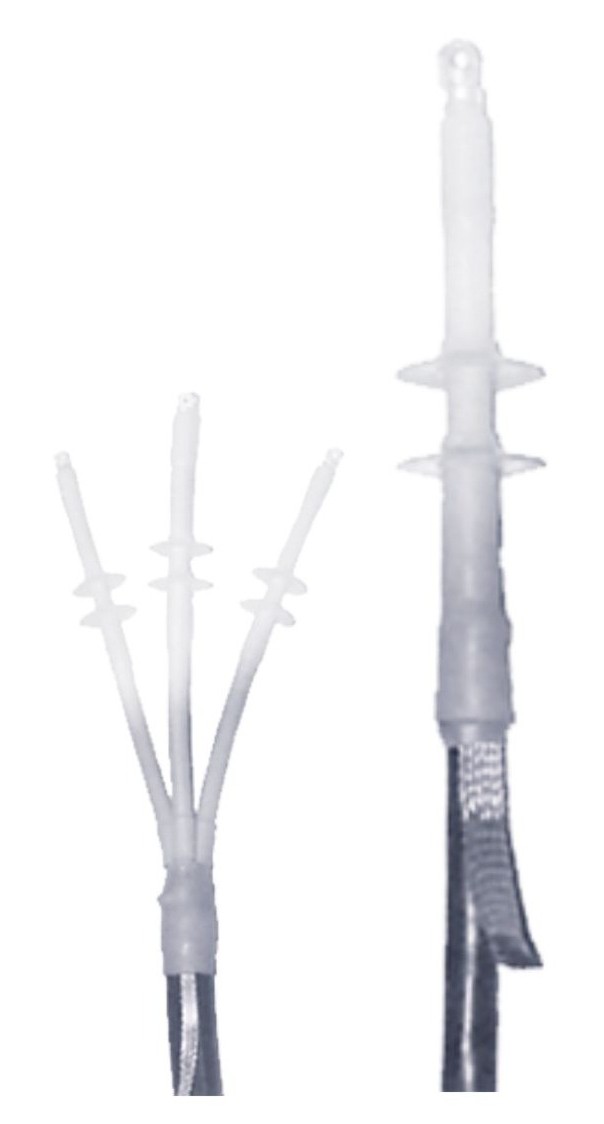

Earthed installations



Our Standard Products

Material : Dia. 0.10 mm Tinned Copper Wire

Knitted Type Mesh Layflat Width
Mesh Length
Sleeve 25mm 4.5MTR 9.1MTR
Ribbon 25mm 4.5MTR 9.1MTR
45mm 4.5MTR 9.1MTR
60mm 4.5MTR 9.1MTR

@

@

@

@

@

Rolls in weight or in lengths per customer requirements are available.

@


Mesh Specifications

(Unit: mm +/- 5%)

Knitted Type Mesh layflat Width Numbers of Wire Mesh Division Loop Length Mesh Thickness
Sleeve 25 1 1.92 1.54 0.35
Ribbon 25 8 6.25 3.0 0.50
45 8 5.00 4.0 0.50
60 8 4.62 5.0 0.50

@

@

@

@

@

@

Other customized specifications are welcome.

@


@
@

@

@
@

@

@

@
